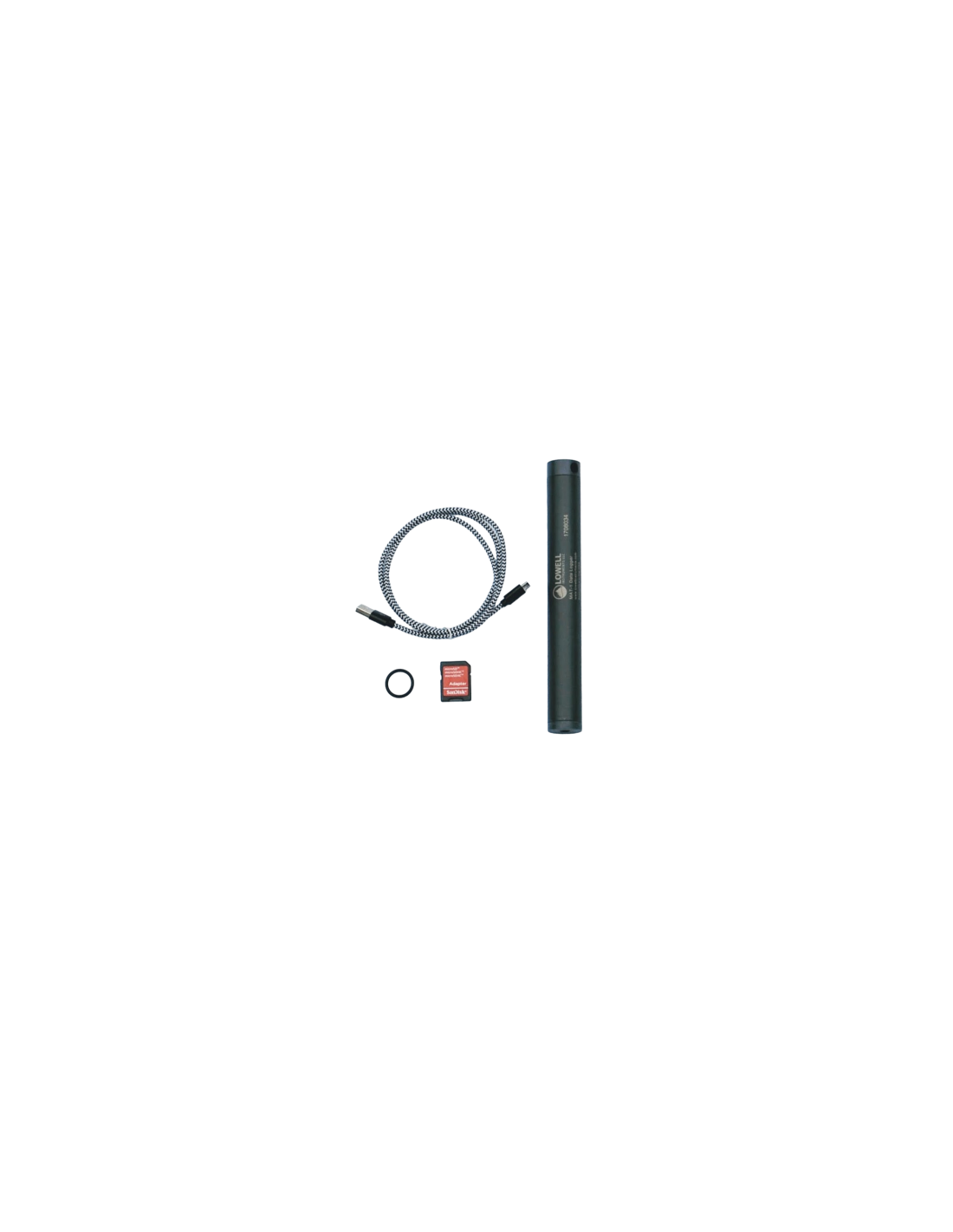

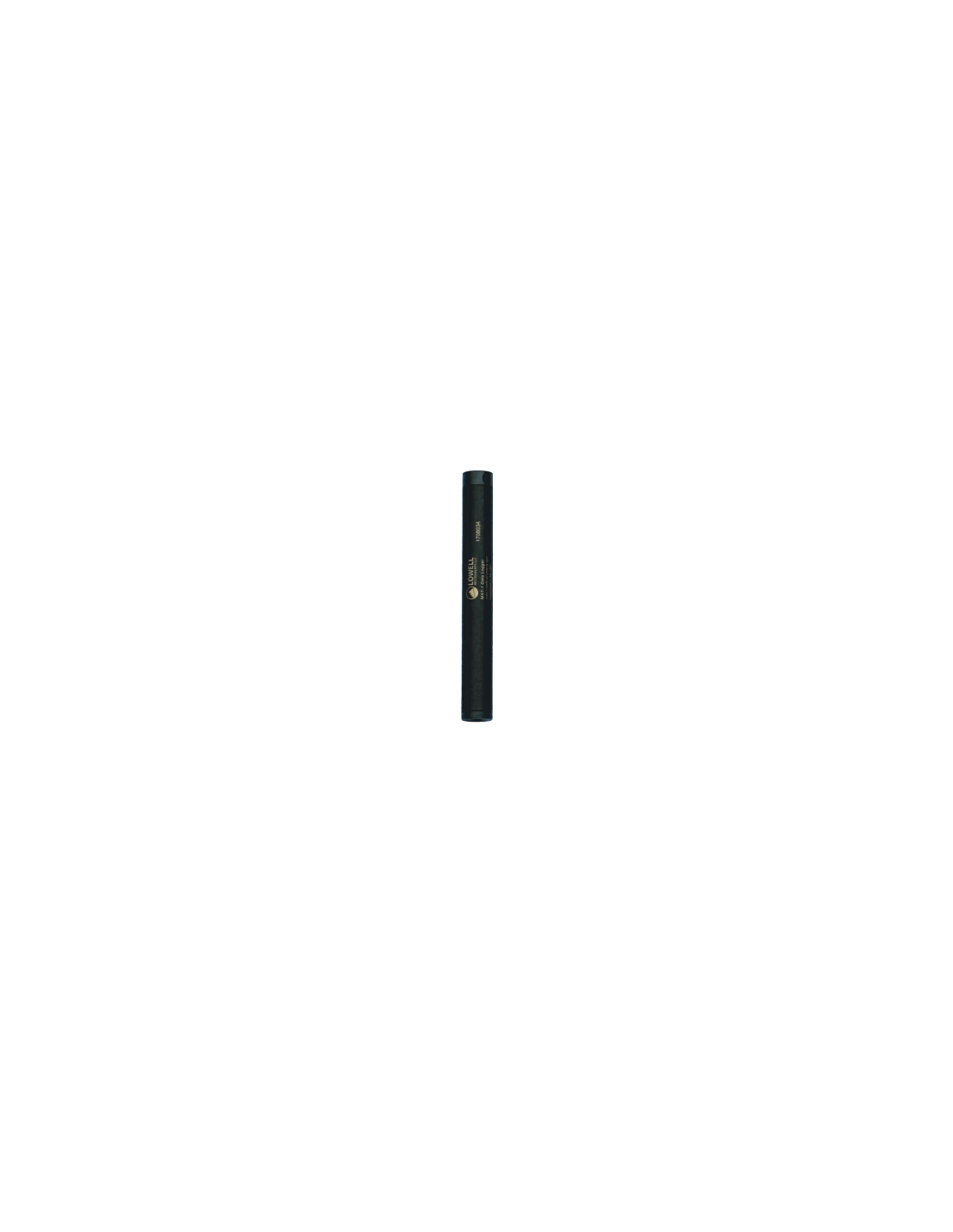

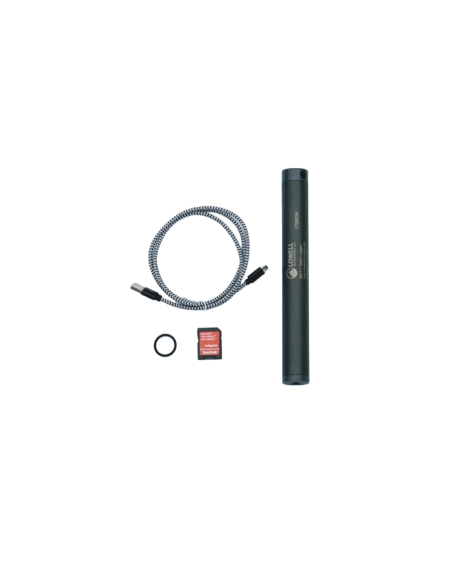

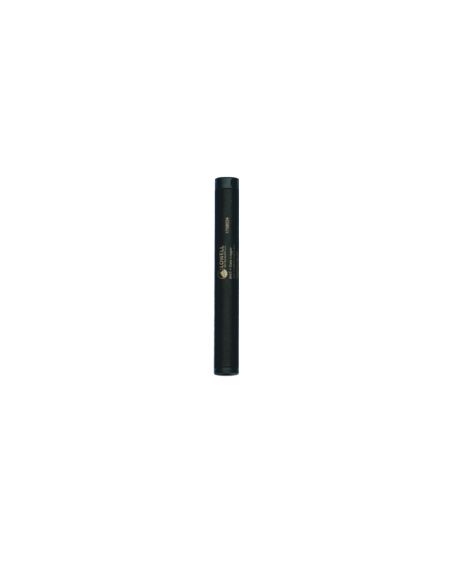

The MAT-1 Data Logger™ is a device that is capable of recording absolute orientation, acceleration (including vibration) and temperature. The logger contains three sensors: a 3-axis magnetometer, 3-axis accelerometer and a thermistor. The logger uses a microSD flash card to store data and a long-life lithium battery that runs for months to years depending on recording rates.

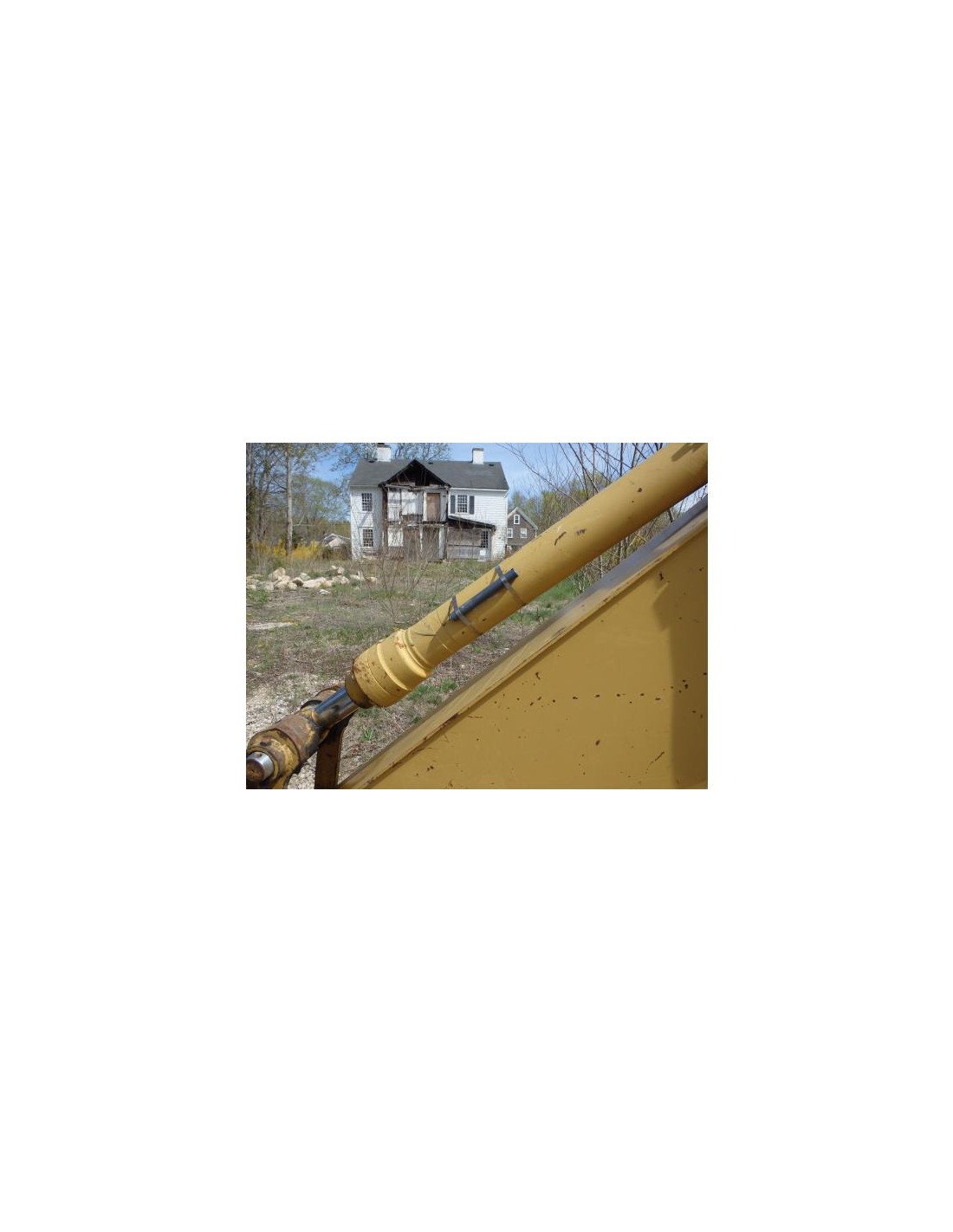

The MAT-1 Data Logger has a wide range of uses on land and at sea. It can be used as a motion sensor to record vehicle use on land or to analyze underwater vehicle dynamics at sea. It can monitor the condition of goods during transit, including orientation, temperature, and vibration. Oceanographers use the logger as a tilt meter to measure and map ocean currents and temperature on the bottom for fisheries management, current modeling and ecological studies.

Features

• 300 meter depth rating
• Resolve static orientation to <1°
• Sample accelerometer and magnetometer at up to 64Hz
• Temperature sensor accurate to +/- 0.1 °C
• 8 GB memory card eliminates memory concerns
• Lithium battery allows continuous recording at 64Hz for 6 weeks and for more than 12 months at 4Hz
• USB 2.0 with standard cable and drag and drop data file offload
